Skyline products

Different styles for different windows

Sliding doors, windows, pivot, bi-fold, and many other kinds of products are possible in collection Skyline Minimal Frames, all showing its essential and neat style.

Sliding

Door

Bifold

Pivot

Drive

Facade

Handle

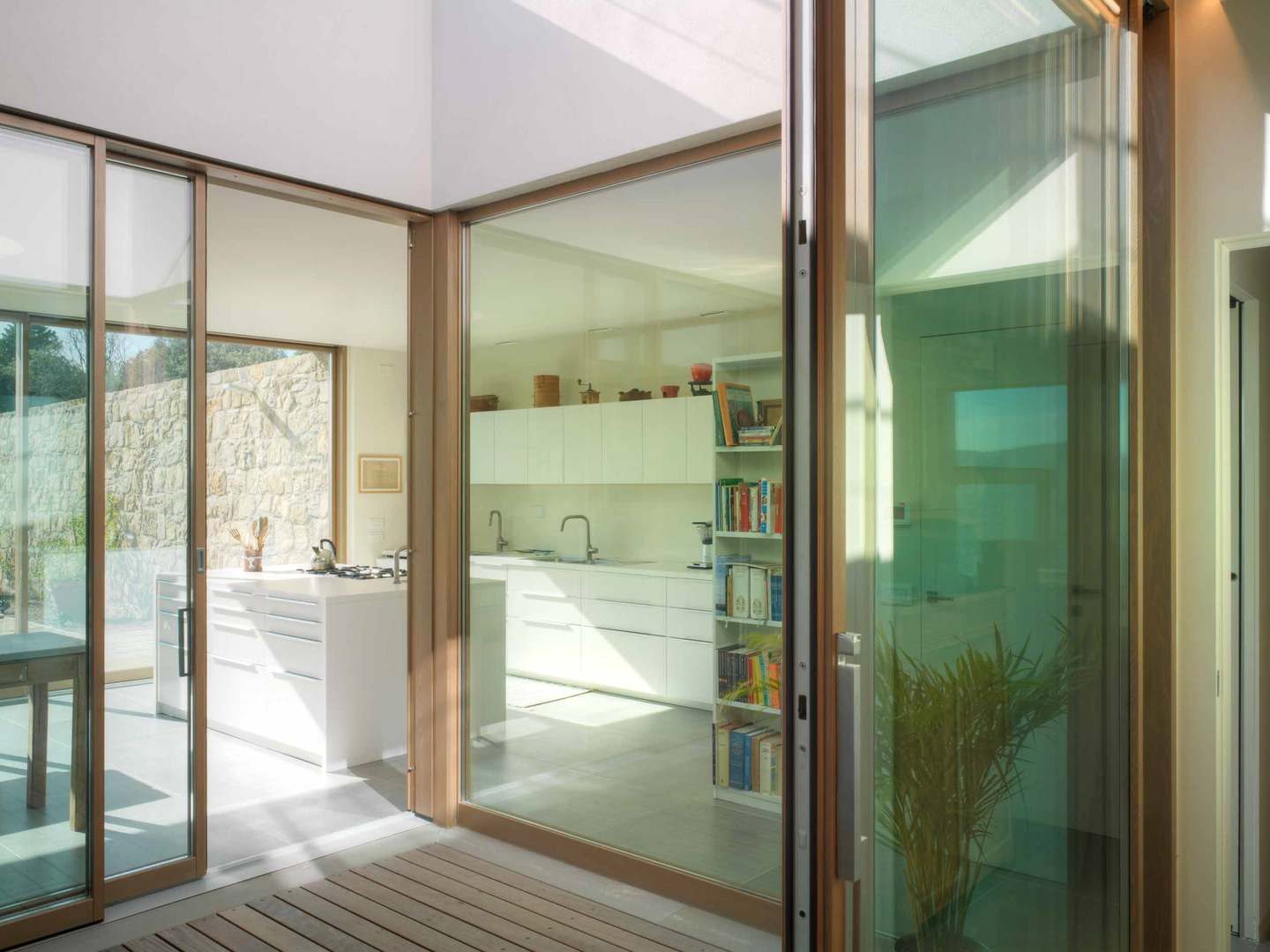

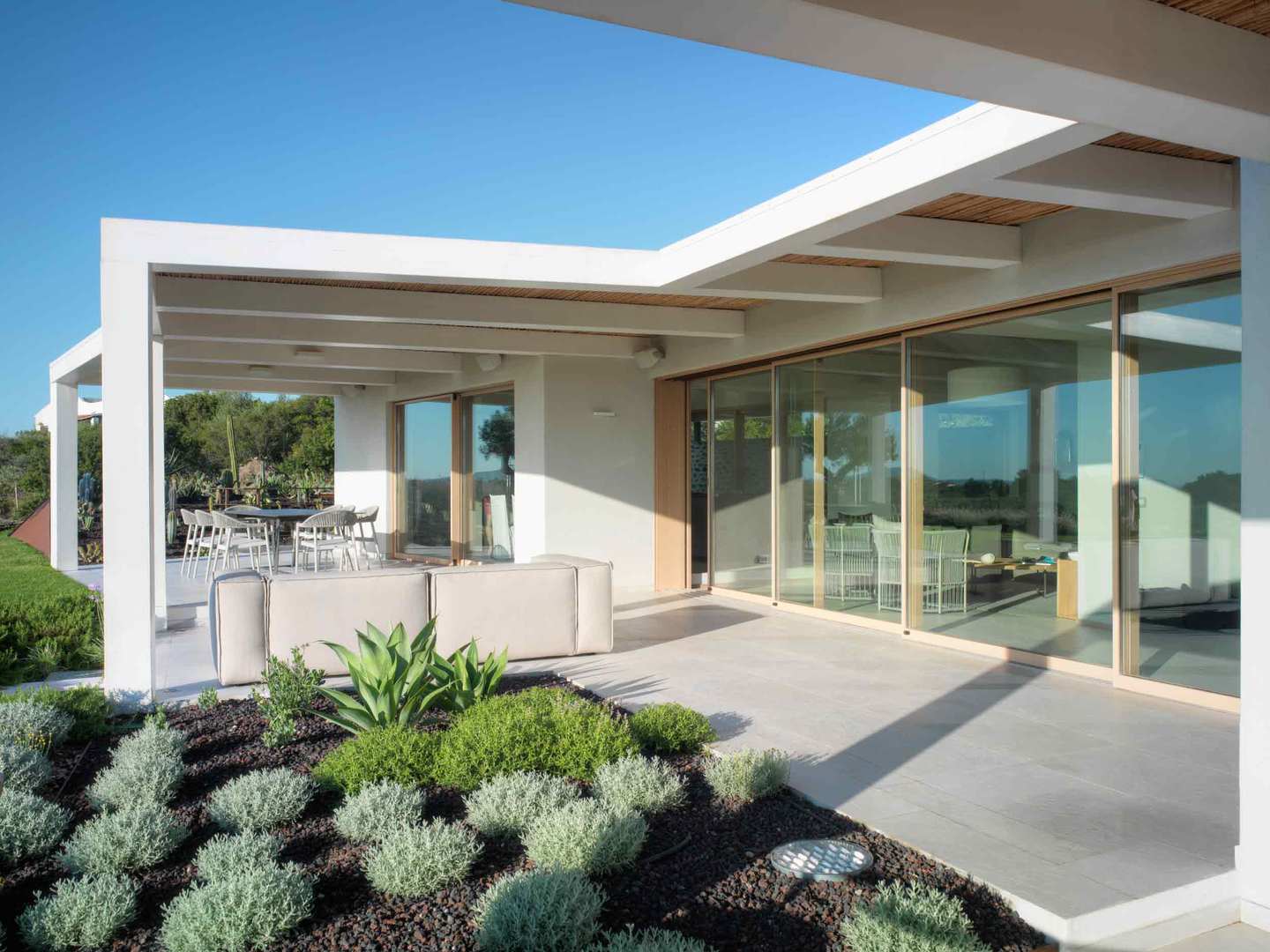

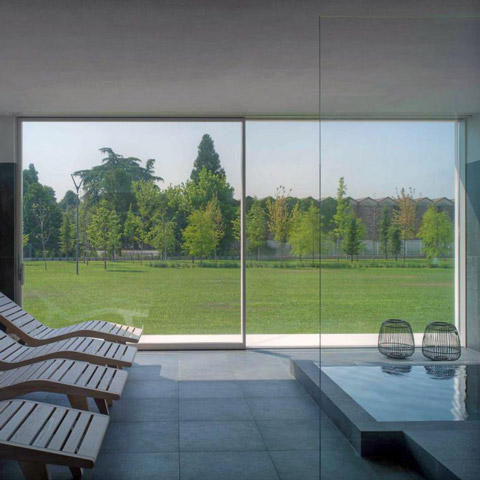

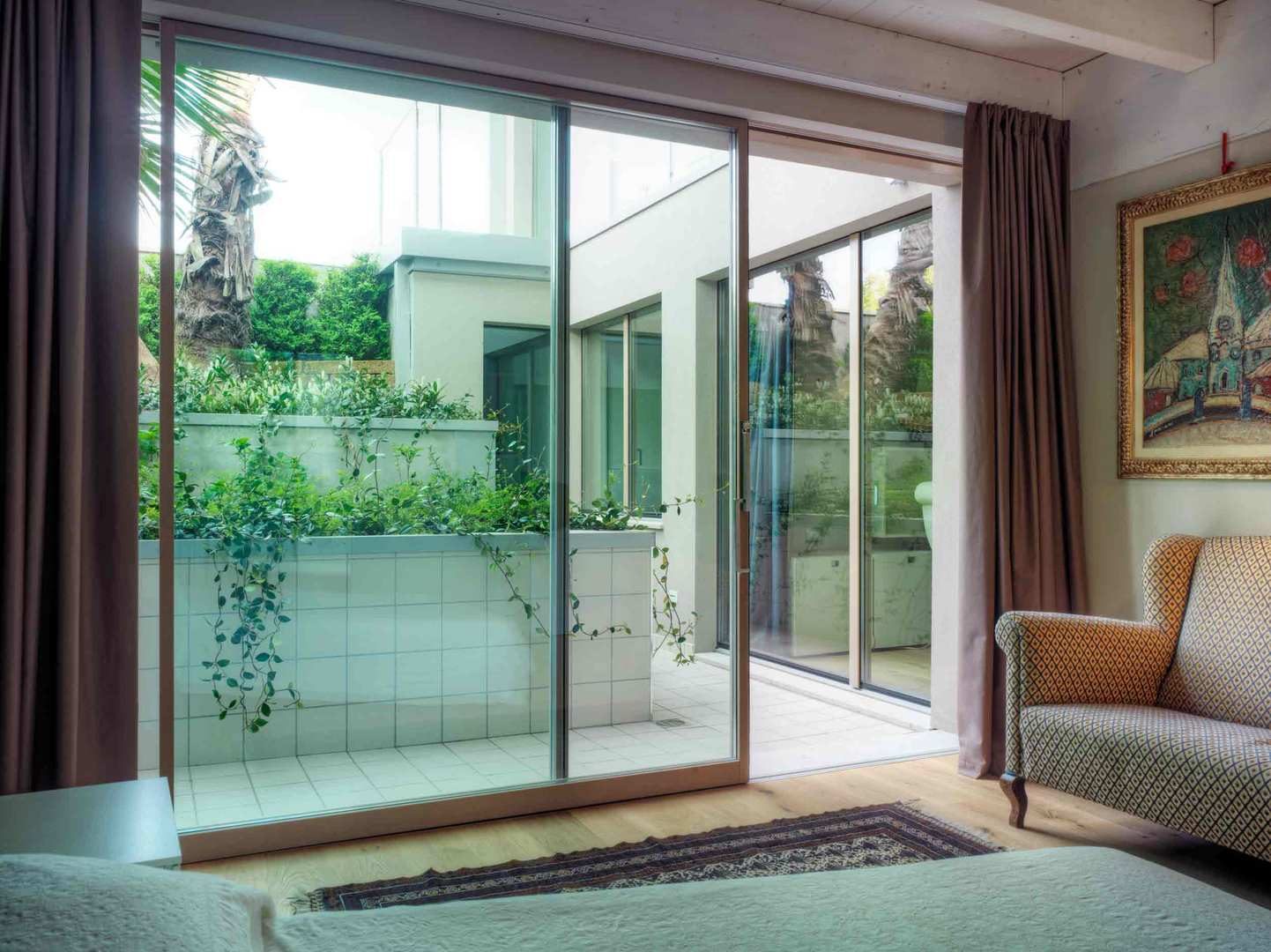

Sliding

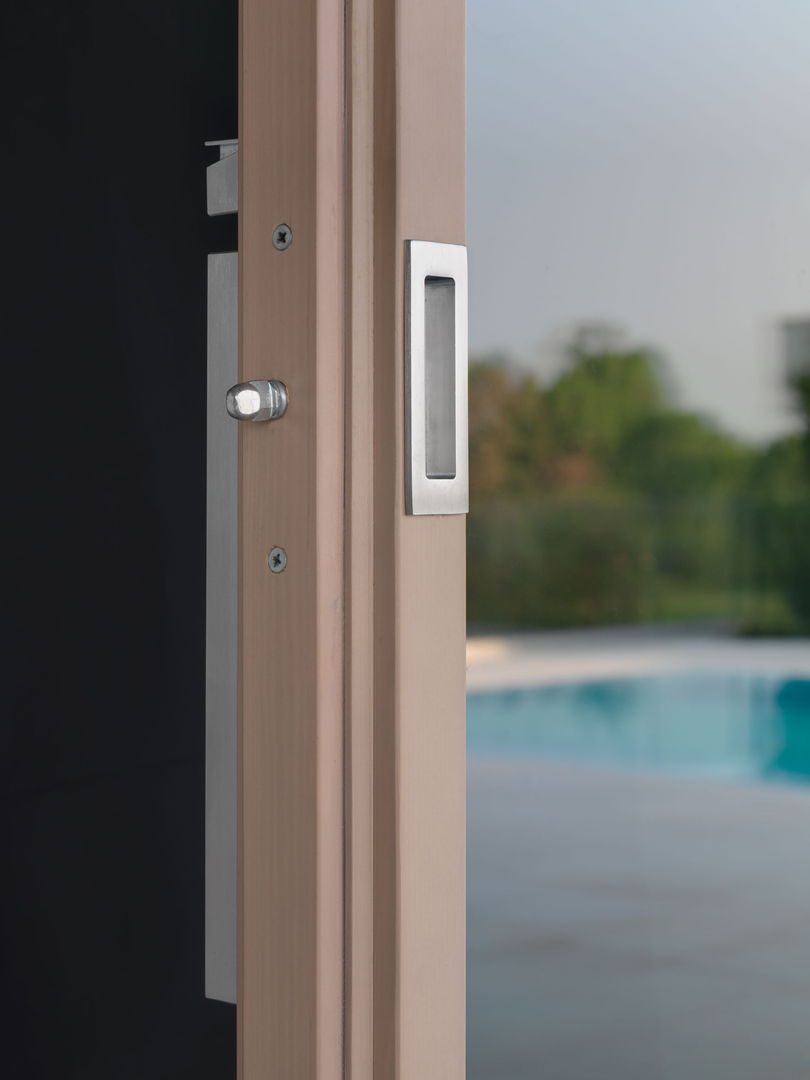

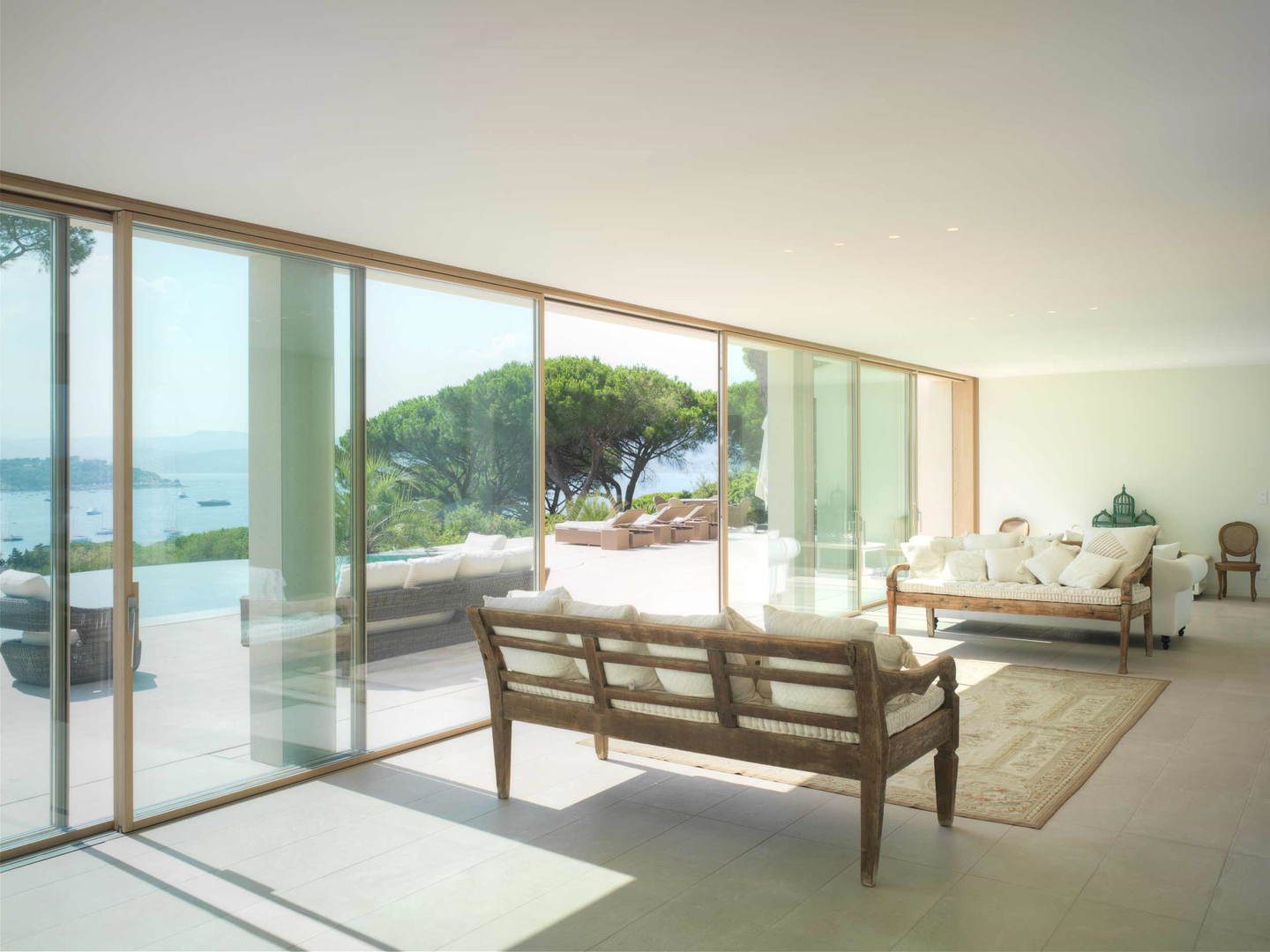

This opening system has a profile of only 37 mm, that conceals the most advanced technical features. The perfect integrated handle adds elegance making it suitable for any environment.

It is available in versions with 2, 3 or 4 sliding tracks with single sash dimensions that go up to 3 meters of width and 5 meters of height. The fixed leaf can be made entirely of glass or with a wooden frame.

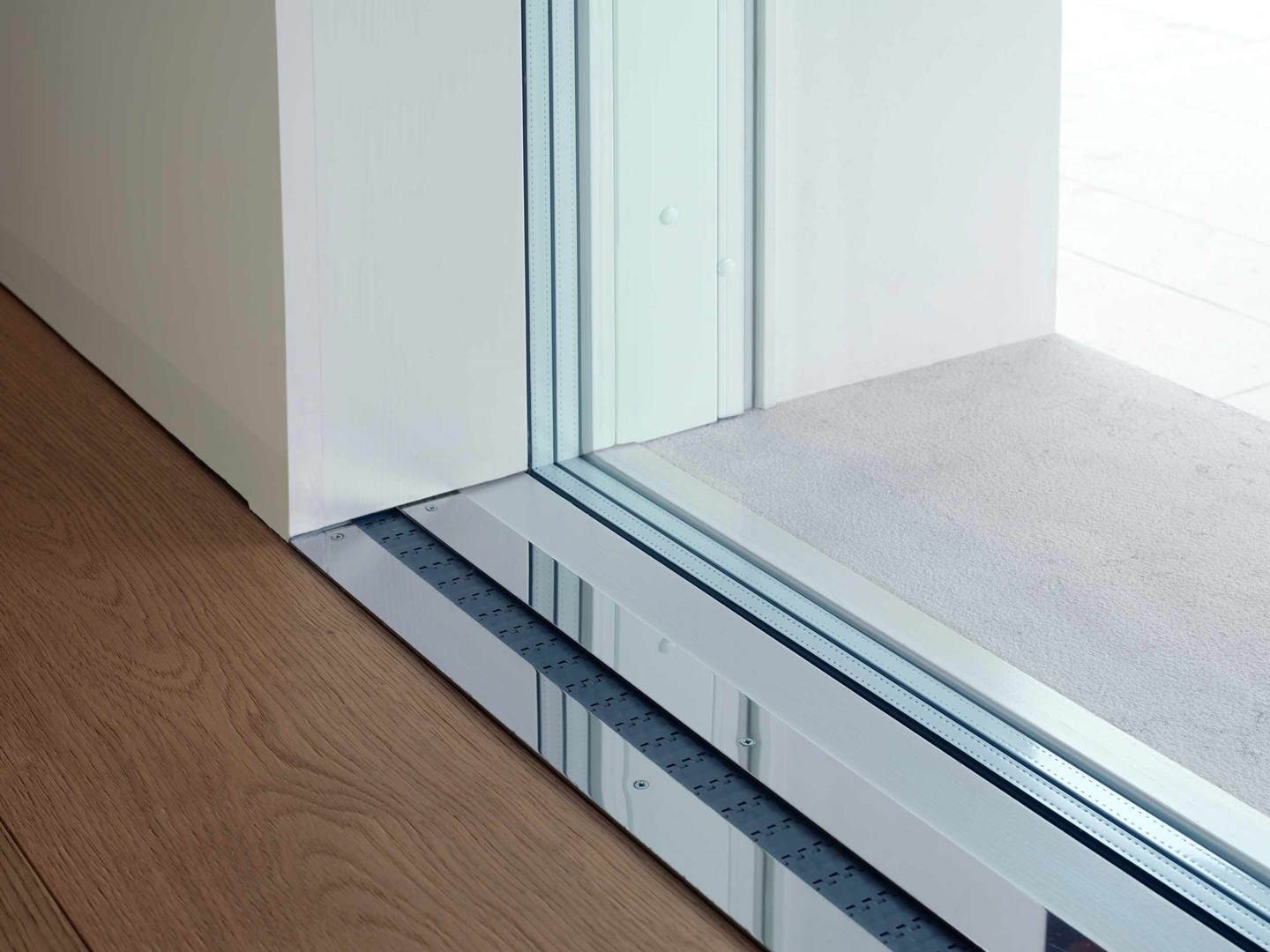

The slide guide track is licensed at prestigious European institutes. It protects the mechanism against dust and dirt, ensuring effective insulation. The inside belt has jointed elements that allow maximum ease of sliding of even large windows, with minimum visual impact.

The external metal or aluminium cladding guarantees a specific resistance in any weather condition thanks to special treatment of the materials. Many colors and finishes are available: from oxidized to RAL colors, from glossy to mat, from smooth to scratched finishes.

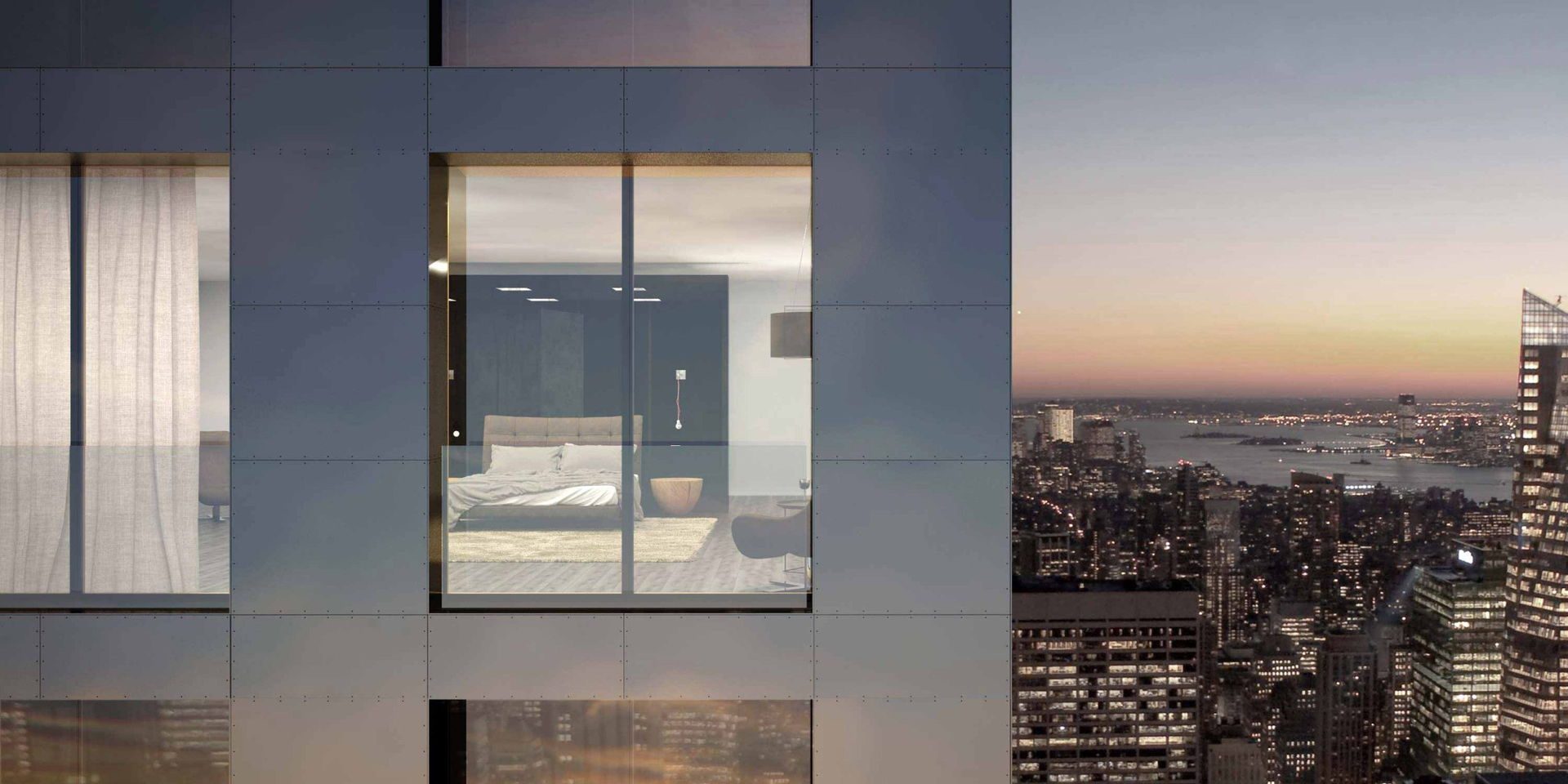

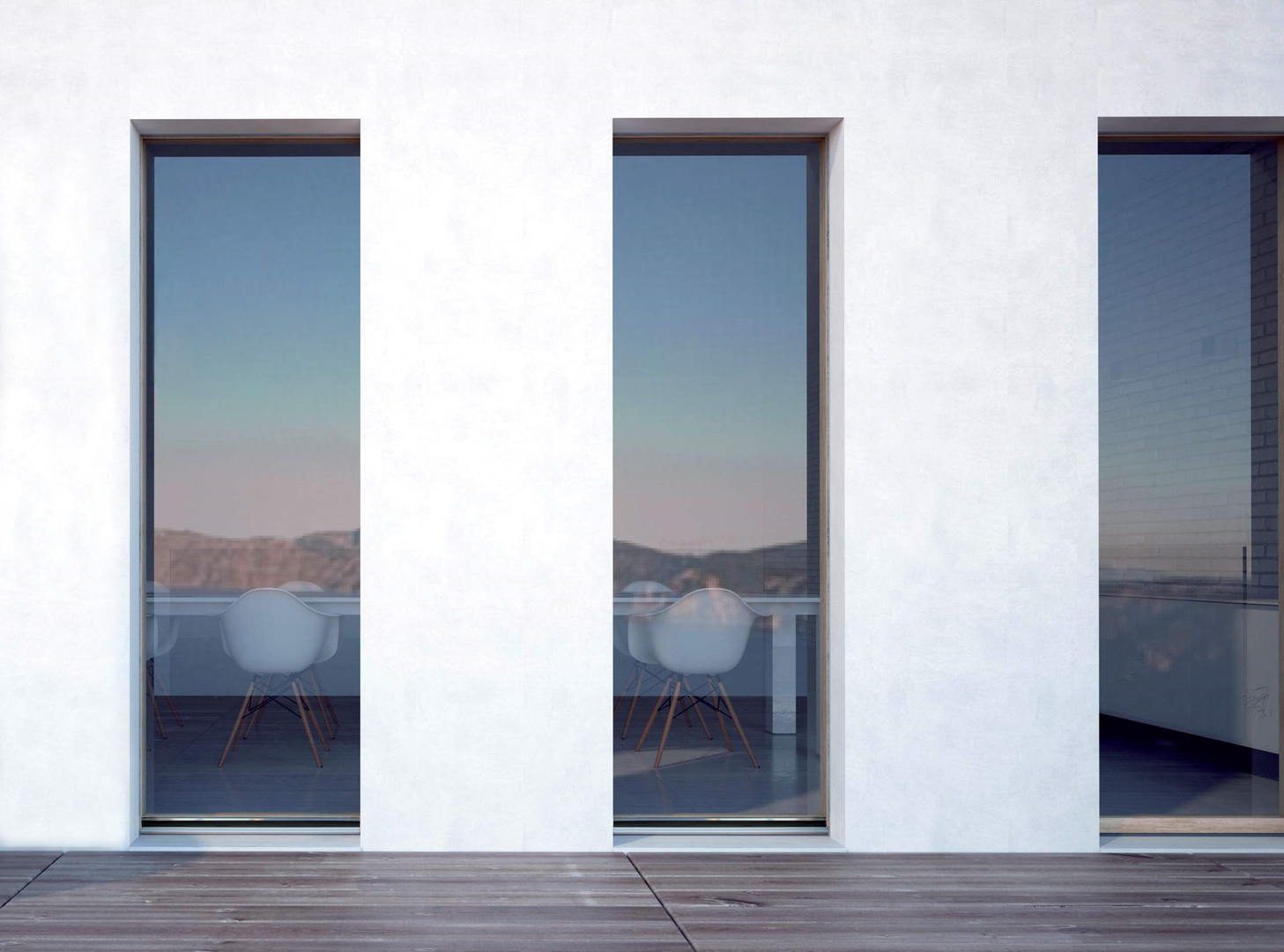

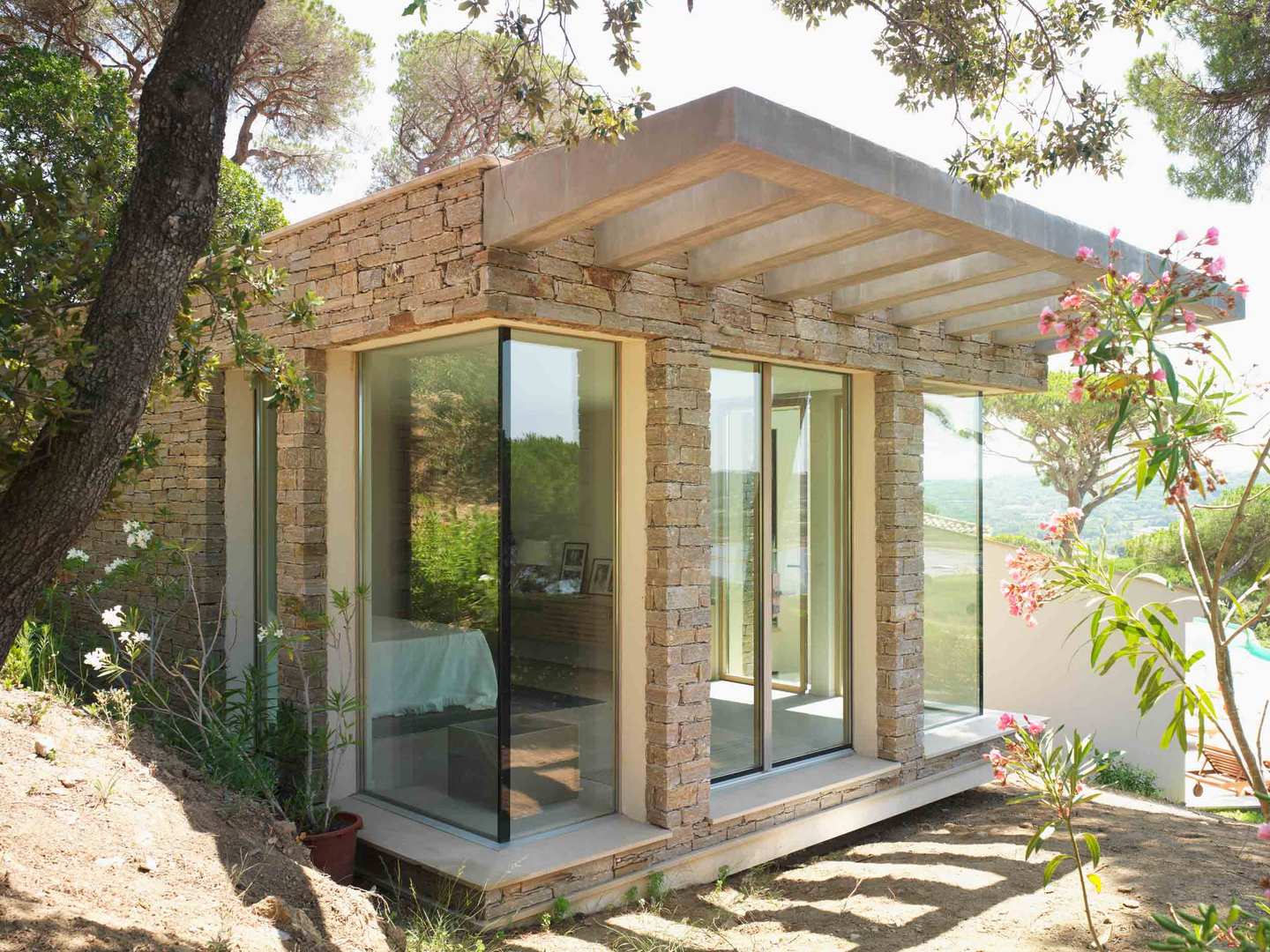

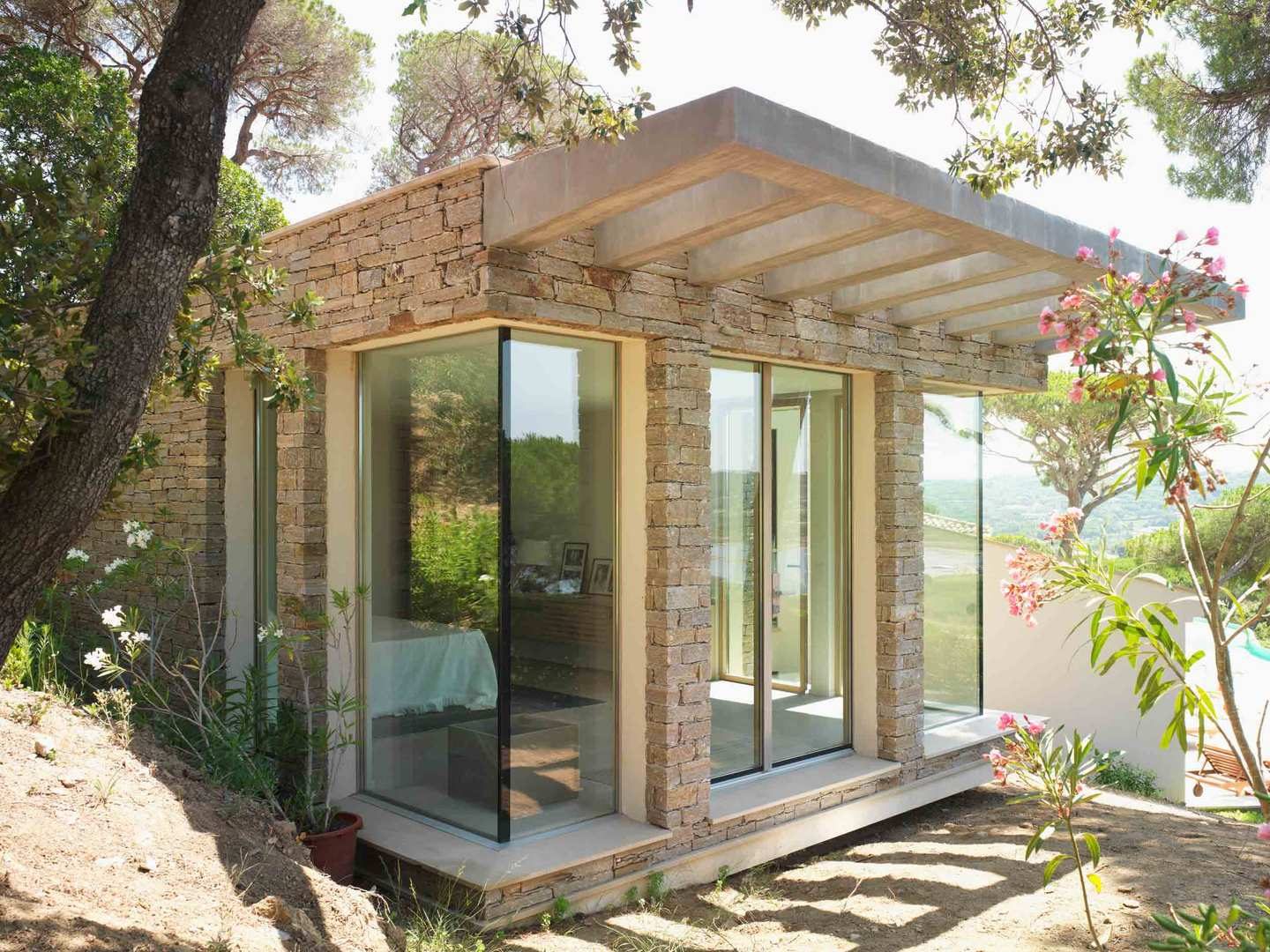

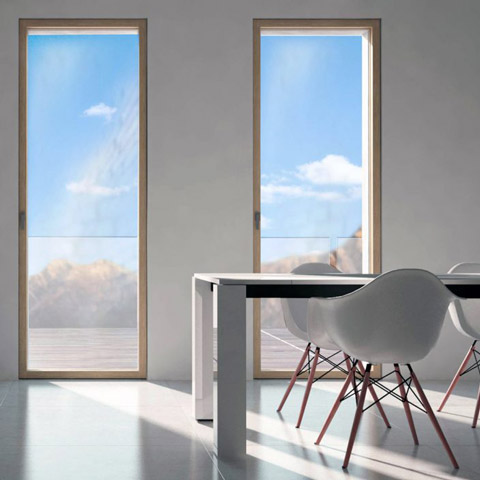

Door

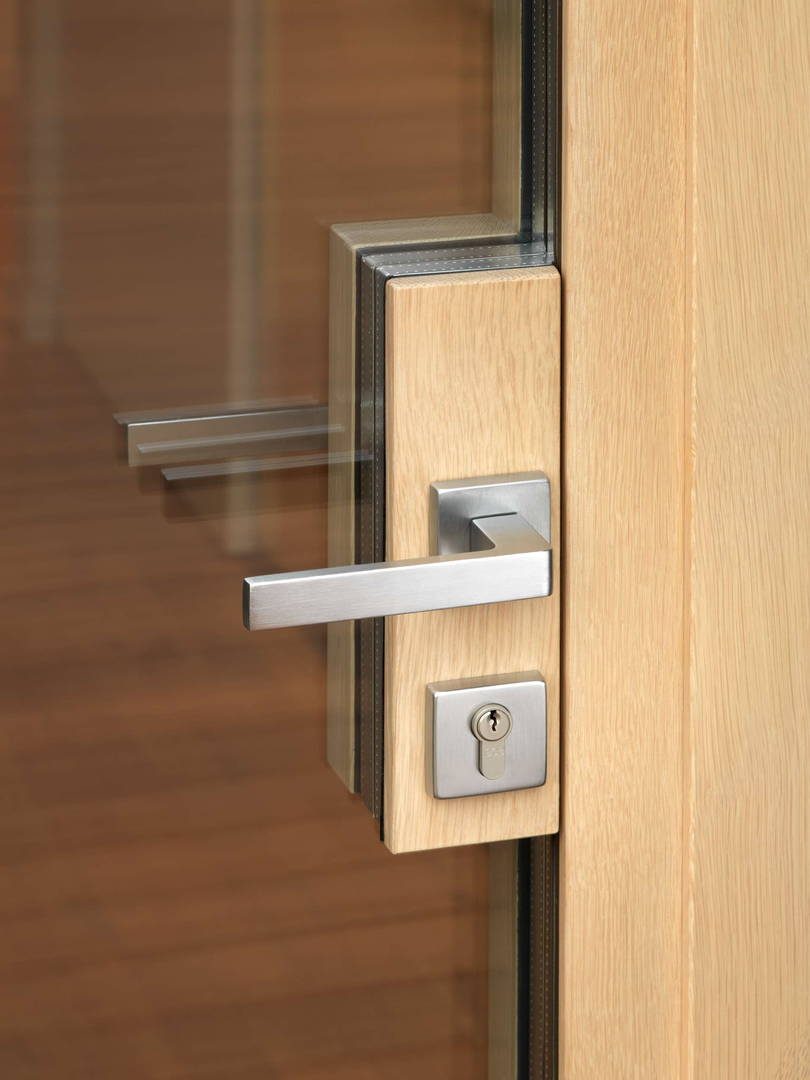

Skyline hinged window are characterised by sober and clean lines and attention to the proportion of shapes. Available with one leaf, two leaves, three leaves tilt and turn openings or with handle and lock, Skyline Door guarantees above-standard security thanks to the reliability of the construction system, which is characterised by structural glueing. The system has been patented in 2012 after extensive market research into innovative construction systems.

Choose hidden hinges for a modern look or visible hinges for a more traditional effect. You can also select among a wide range of wood veneers in different colors and treatments.

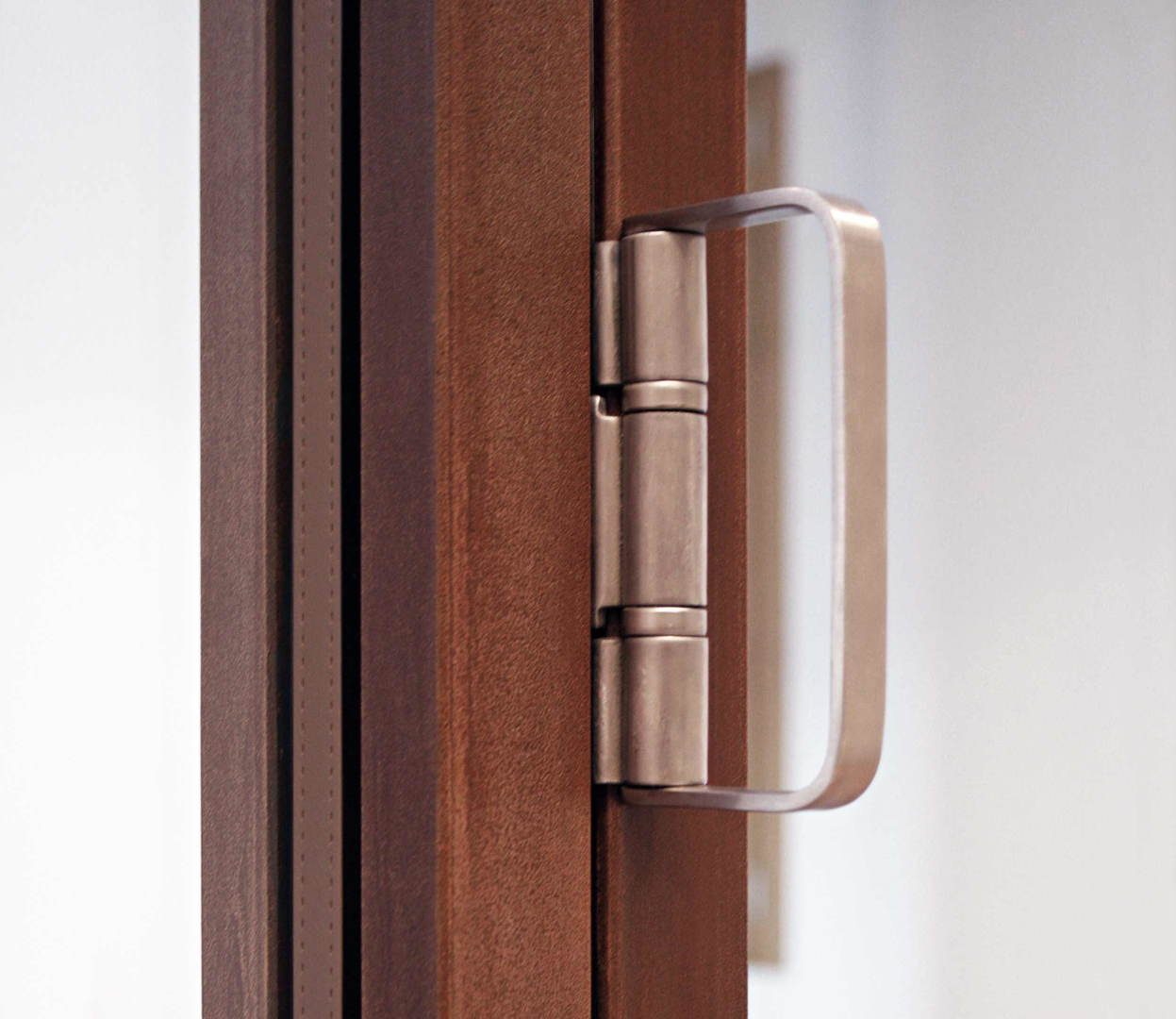

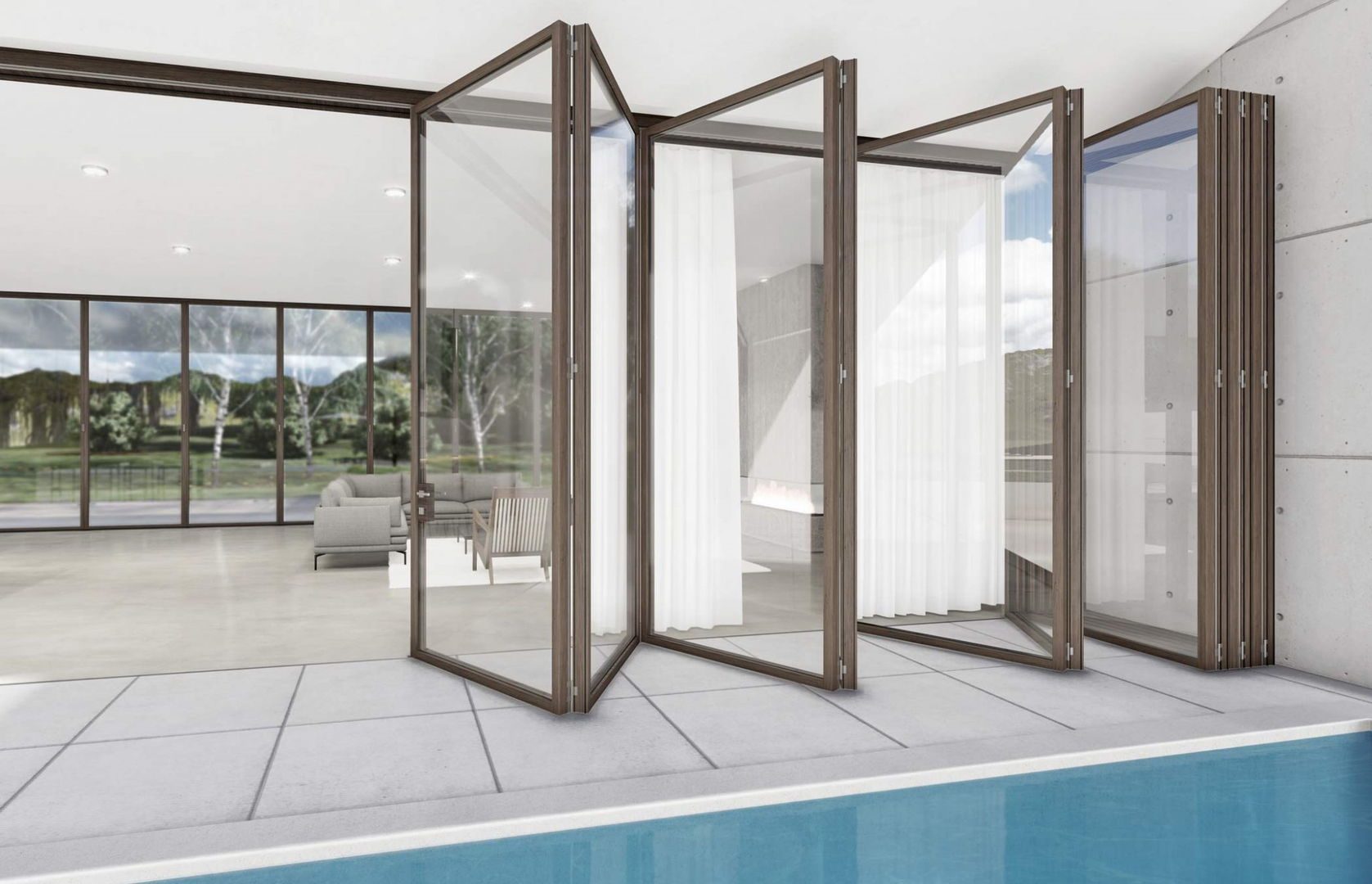

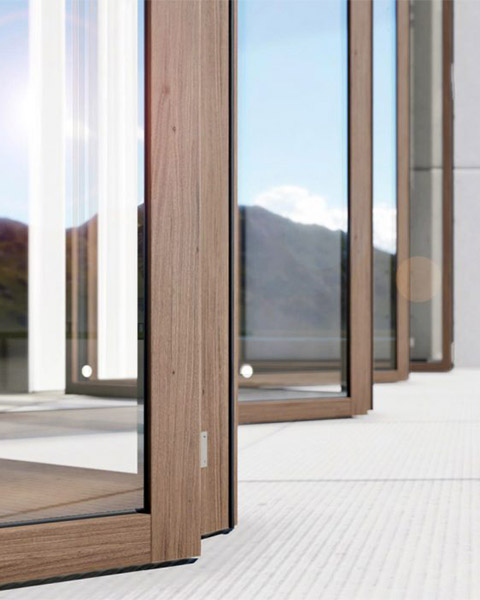

Bifold

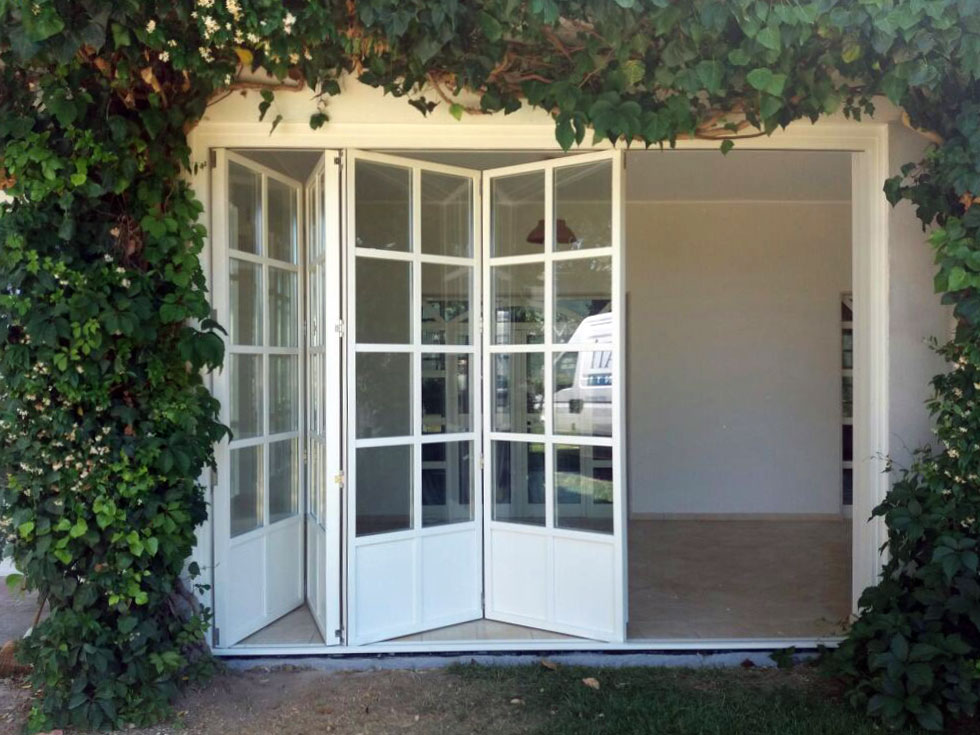

The folding opening of the Skyline Bifold allows for larger openings than any other window. It can be built with modules of up to 8 leaves per side, reaching a maximum opening of 16 metres. The maximum width of each module can be up to one metre, with a weight of 100 kg per leaf.

This type of window provides total continuity between the interior and the exterior of the house. This gives the room an airy appearance. The bifolding system, the hardware and the handles designed ad hoc, enable even the largest sashes to slide open and close smoothly.

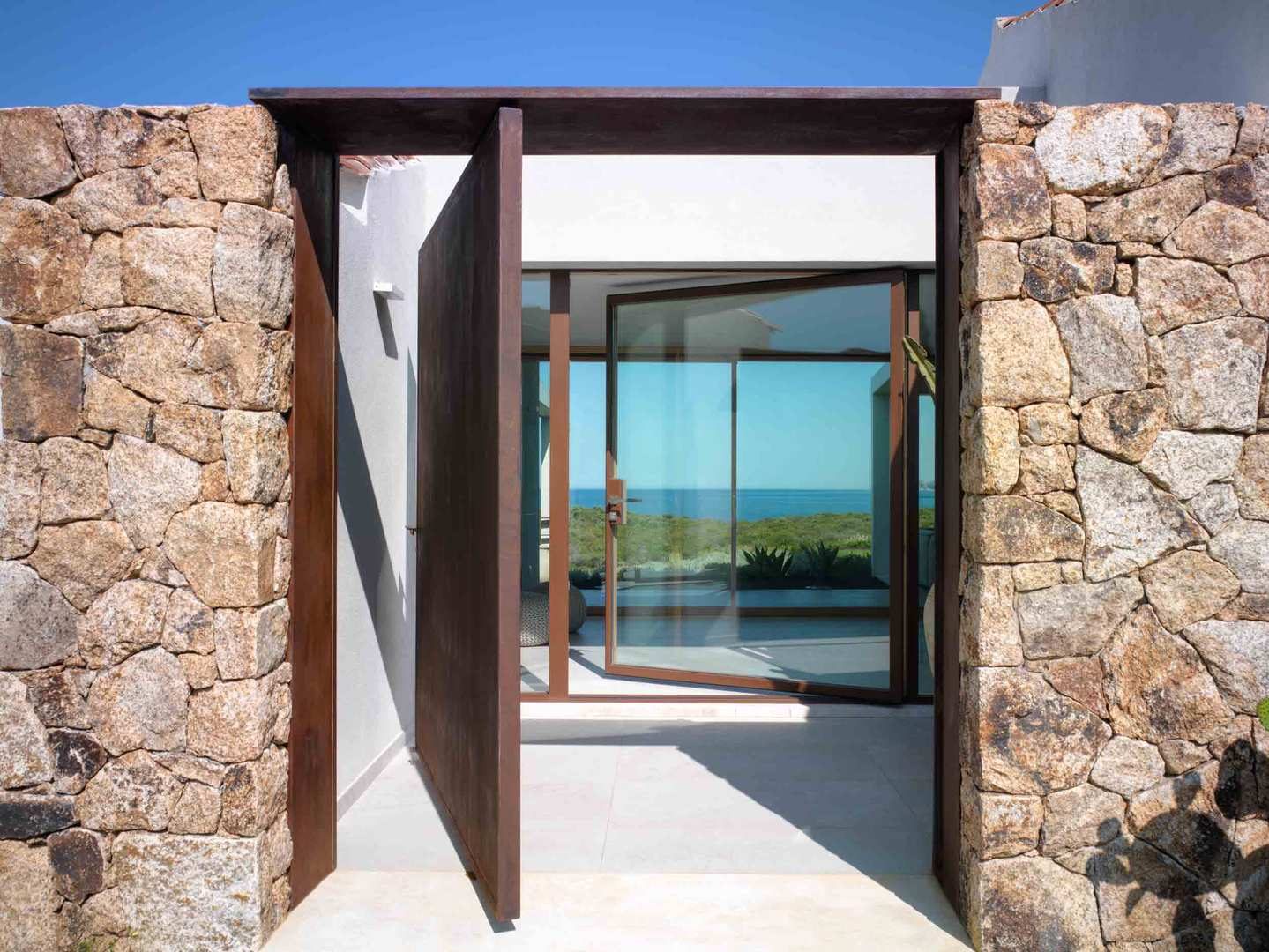

Pivot

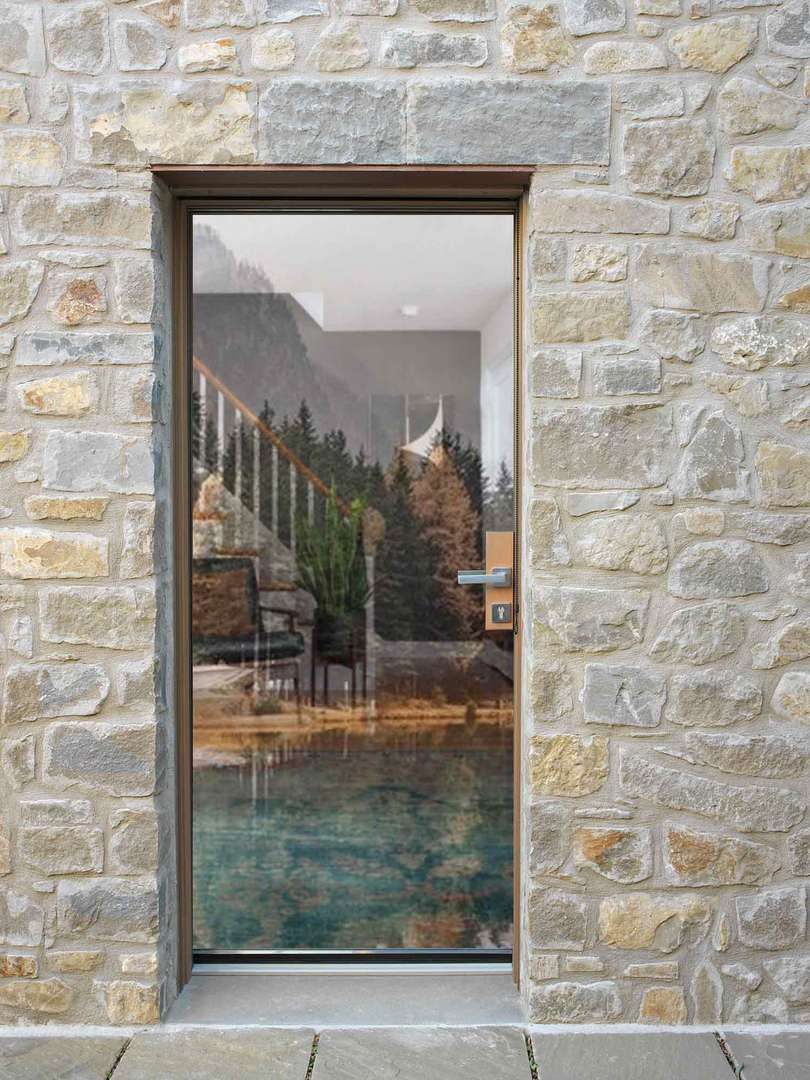

Pivot doors and windows add a touch of elegance to the room. Thanks to a sophisticated system of concealed pivots, the door can be opened inwards or outwards. The dimensions of a sash can be up to 2 metres wide and 4 metres high with a maximum weight of 800 kg. The Skyline Vitrum version features a thin wooden profile combined with a glass pane gives a feeling of continuity and makes the rooms bright and spacious.

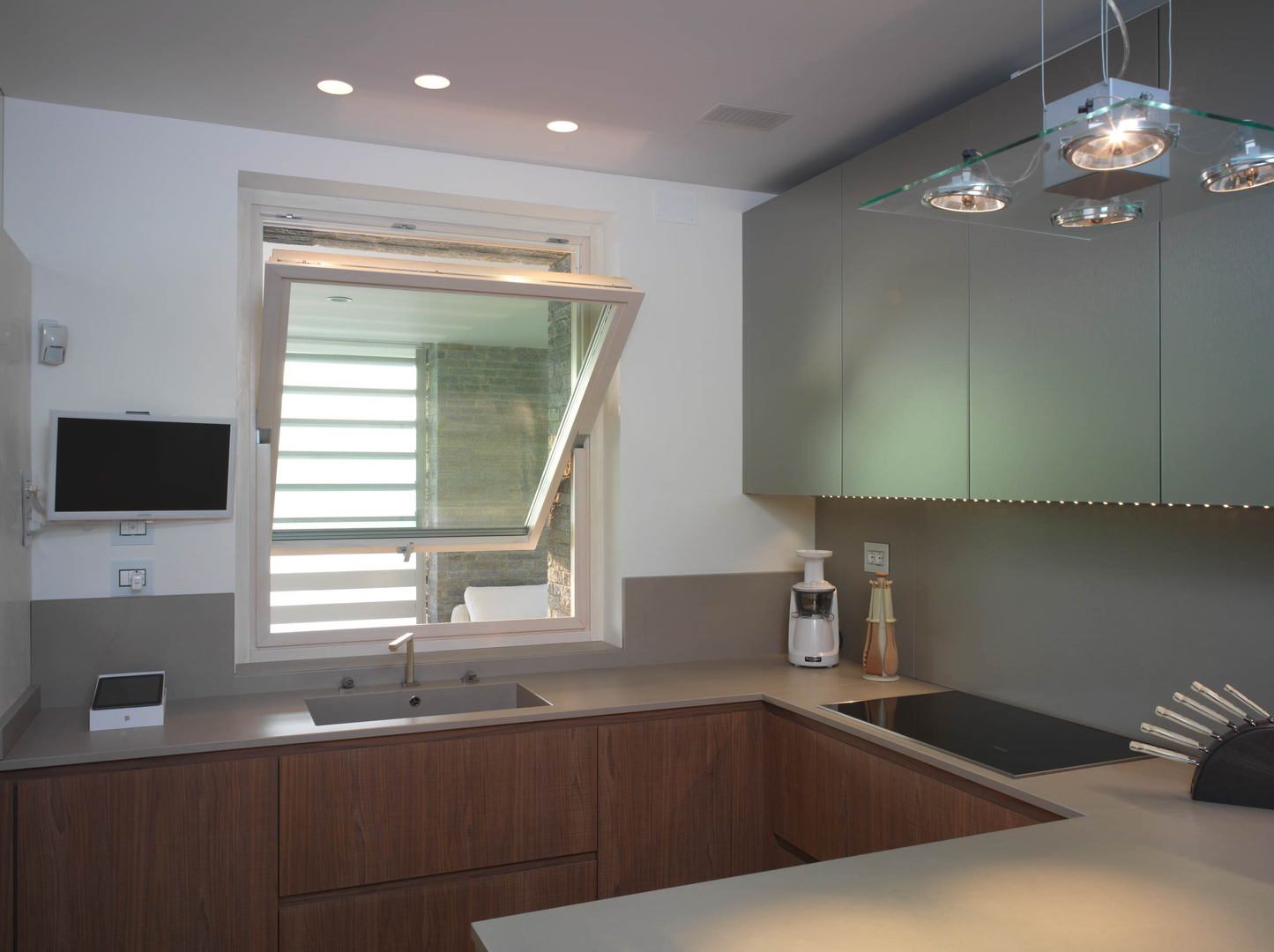

Skyline Pivot gives the possibility to use a horizontal pivot system for windows providing a functional solution for large spans. It is particularly suitable for environments requiring flexible ventilation. The horizontal opening allows a rotation up to 15° for air circulation and up to 360° for cleaning and maintenance operations. Its maximum dimensions are 3 meters in width and 1,5 meters in height; the maximum weight allowed is 300 kg.

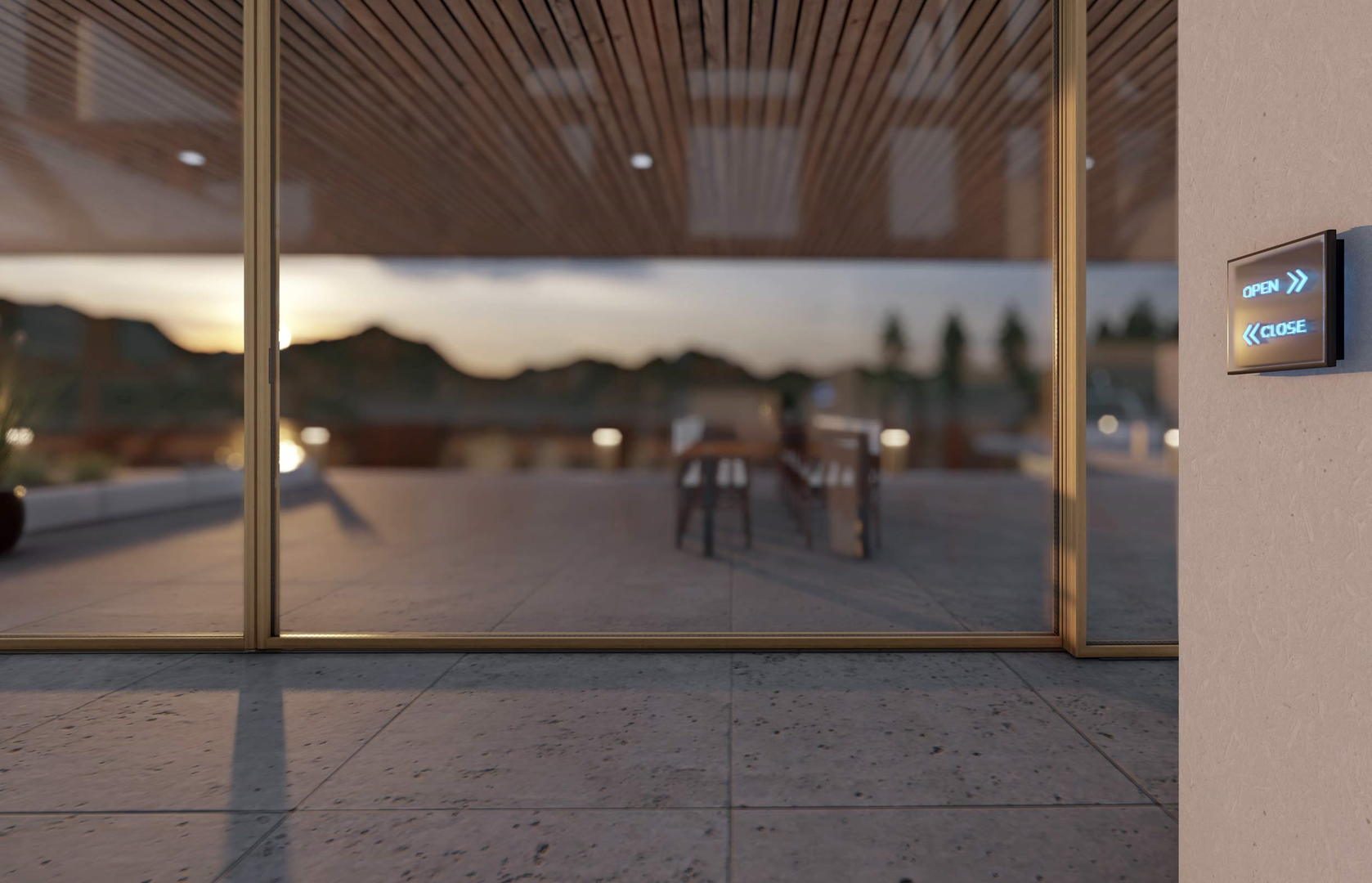

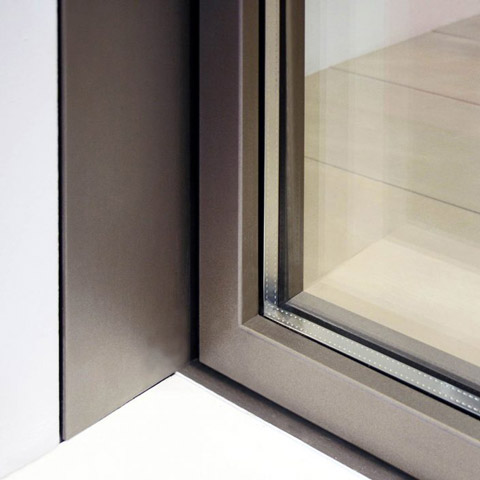

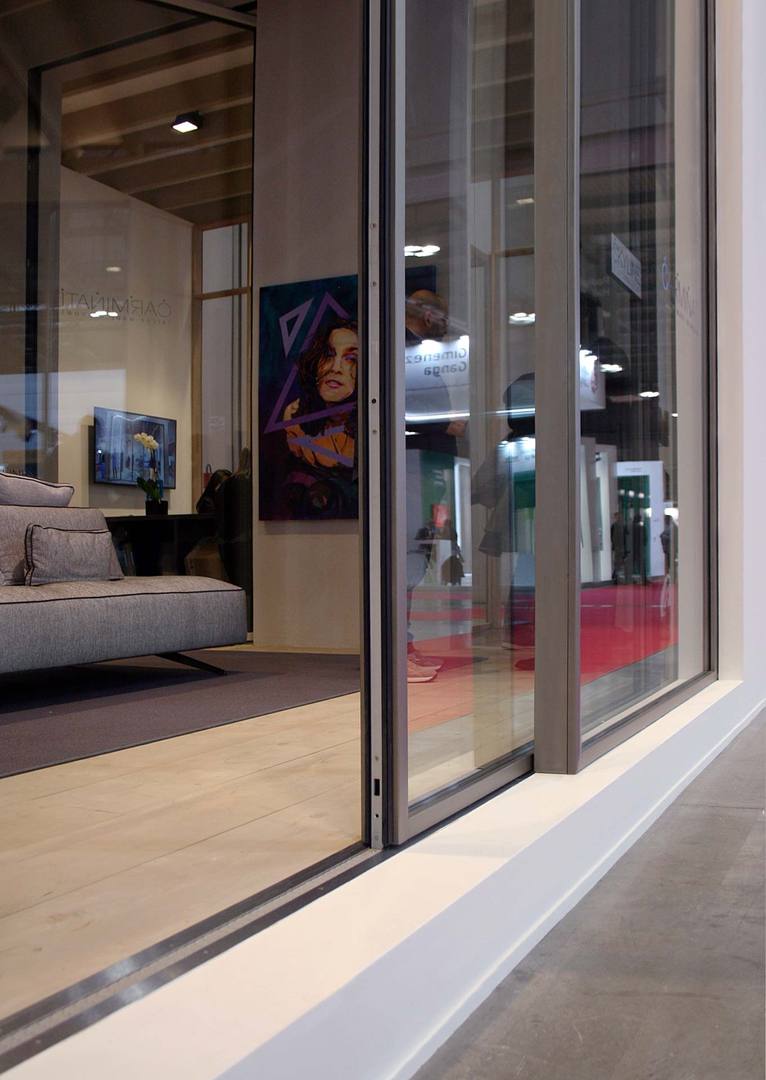

Drive

High-tech technologies gave birth to Skyline Drive, the motorised lift-and-slide system. This device can be applied to any system thanks to motors connected to each sash by means of a concealed belt above the frame.

Opening a door has never been easier. A wall-mounted push-button or a remote control allows the opening of even the largest and heaviest doors. The system provides load capacities of up to 1500 kg per sash with high thermal insulation and excellent thermal transmittance coefficients.

Skyline Drive is equipped with a range of optionals for smart use: opening and securing sensors, digitally coded switches, opening via remote connection and connection to home automation.

Skyline Drive is safer than a traditional sliding system: when closed it is not possible to open it manually and it is also equipped with an electromagnetic board integrated into the alarm system.

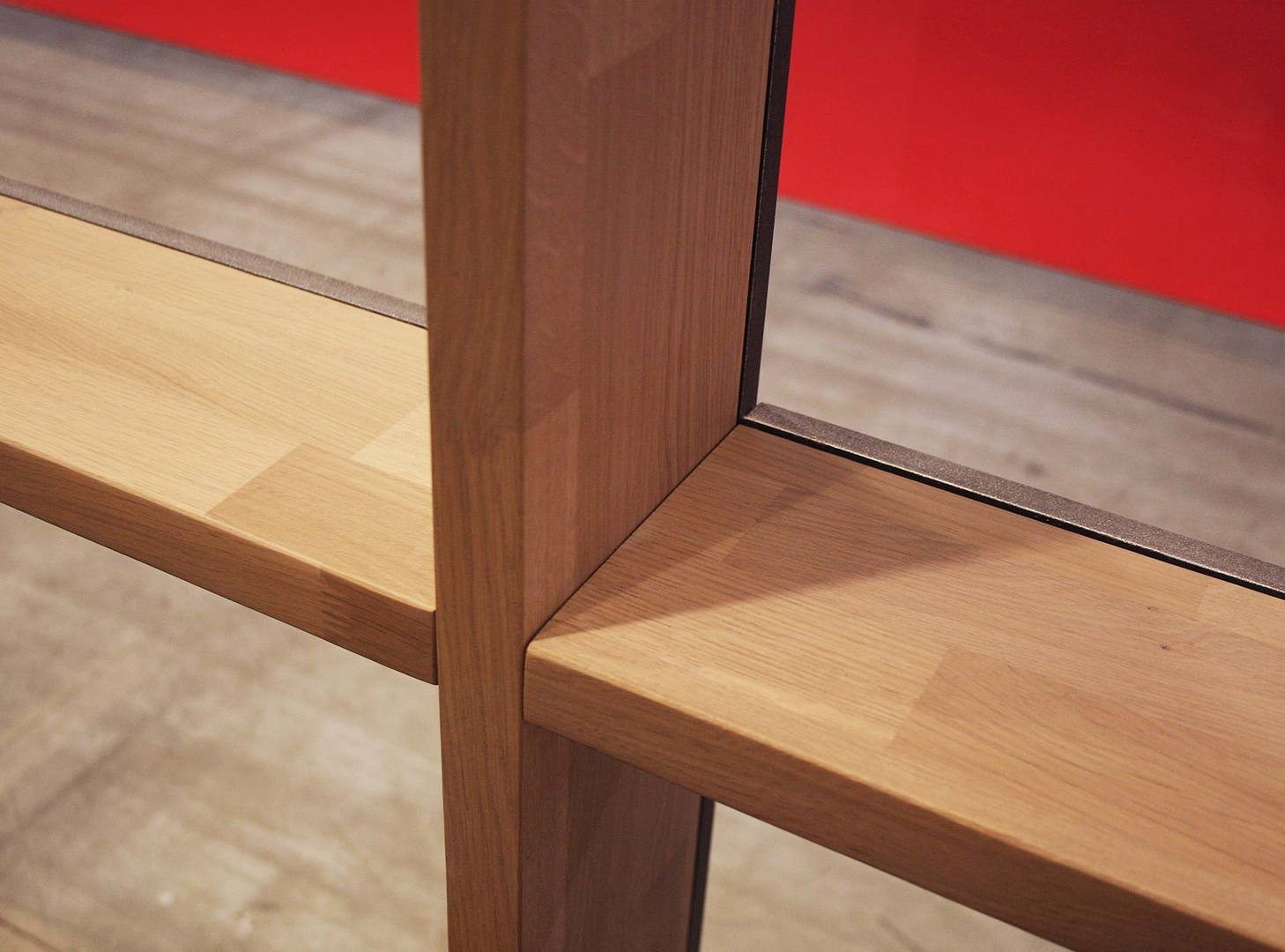

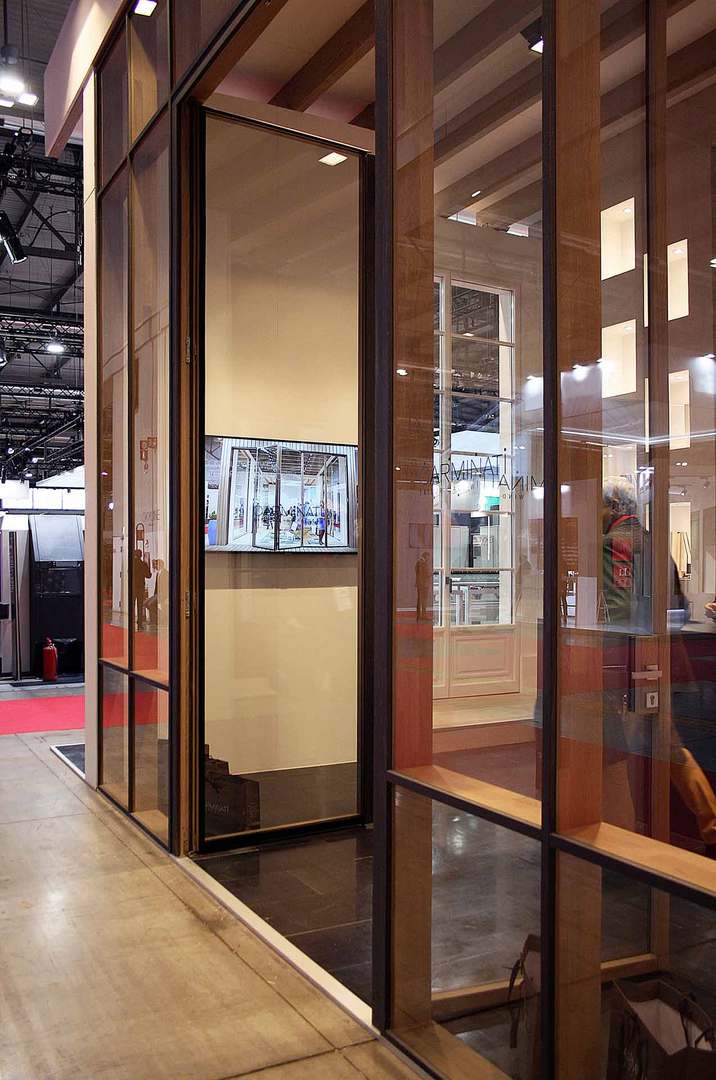

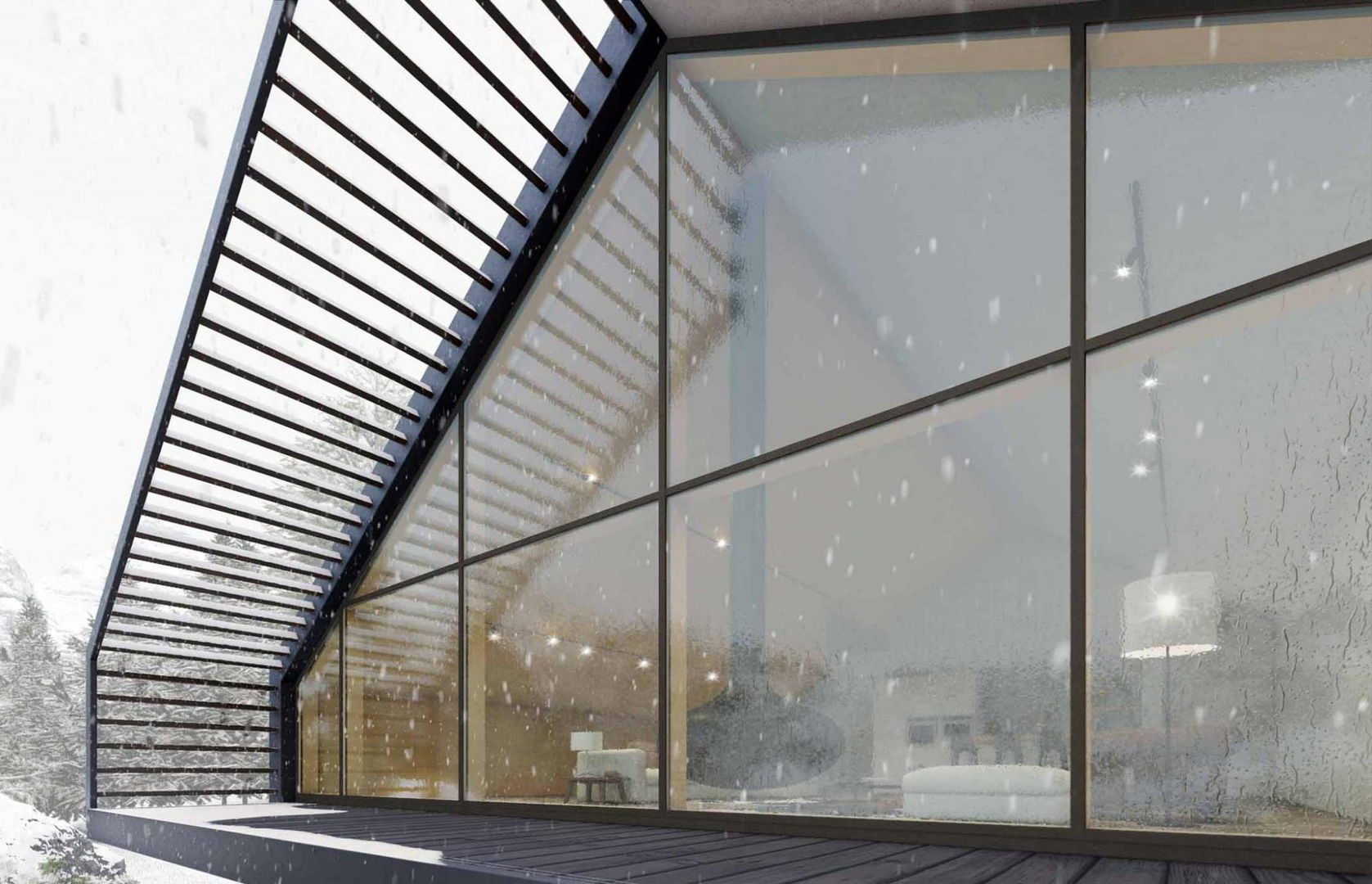

Facade

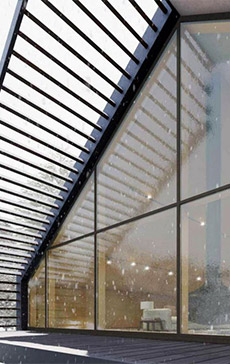

It is a curtain wall system characterized by the typical design of Skyline minimal frame collection that features high energy performance, guaranteeing the maximum amount of natural light and thus ensuring comfort and livability.

The wooden profile of only 50 mm gives lightness to the building, on the outside it can be combined with an aluminium cladding. Wood on the inside improves thermal comfort, while aluminium on the outside offers resistance against weathering.

Each building facade can be customised according to the style and aesthetics required.

The end result will be a luxurious and refined look.

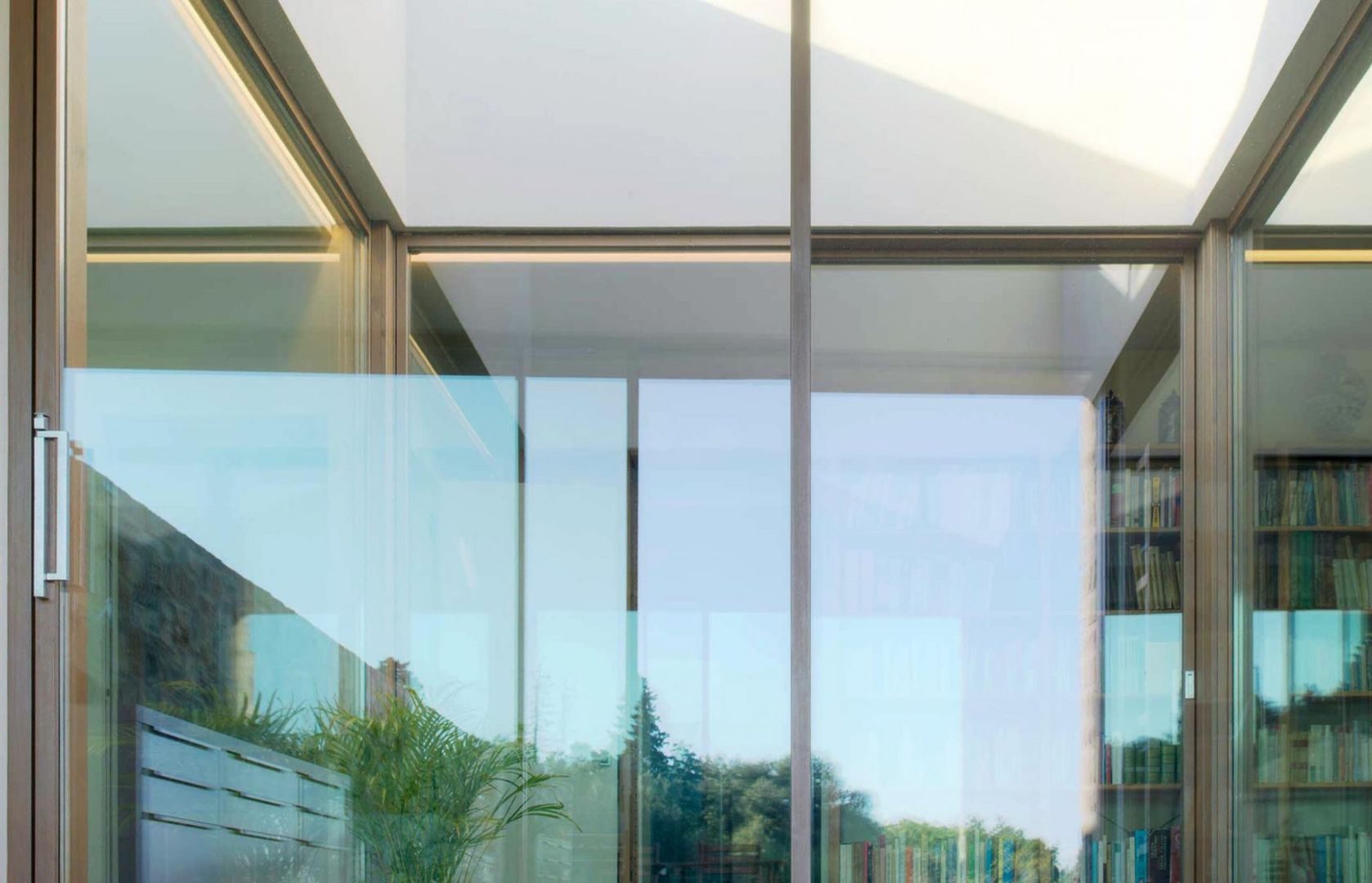

Handle

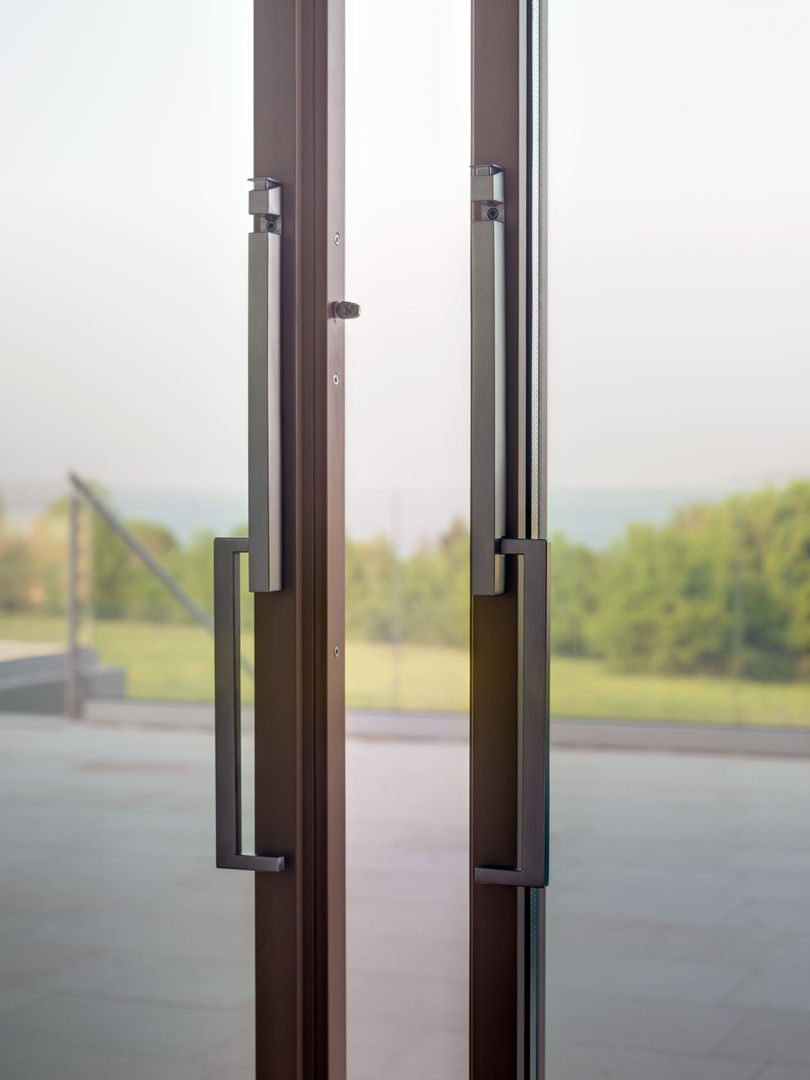

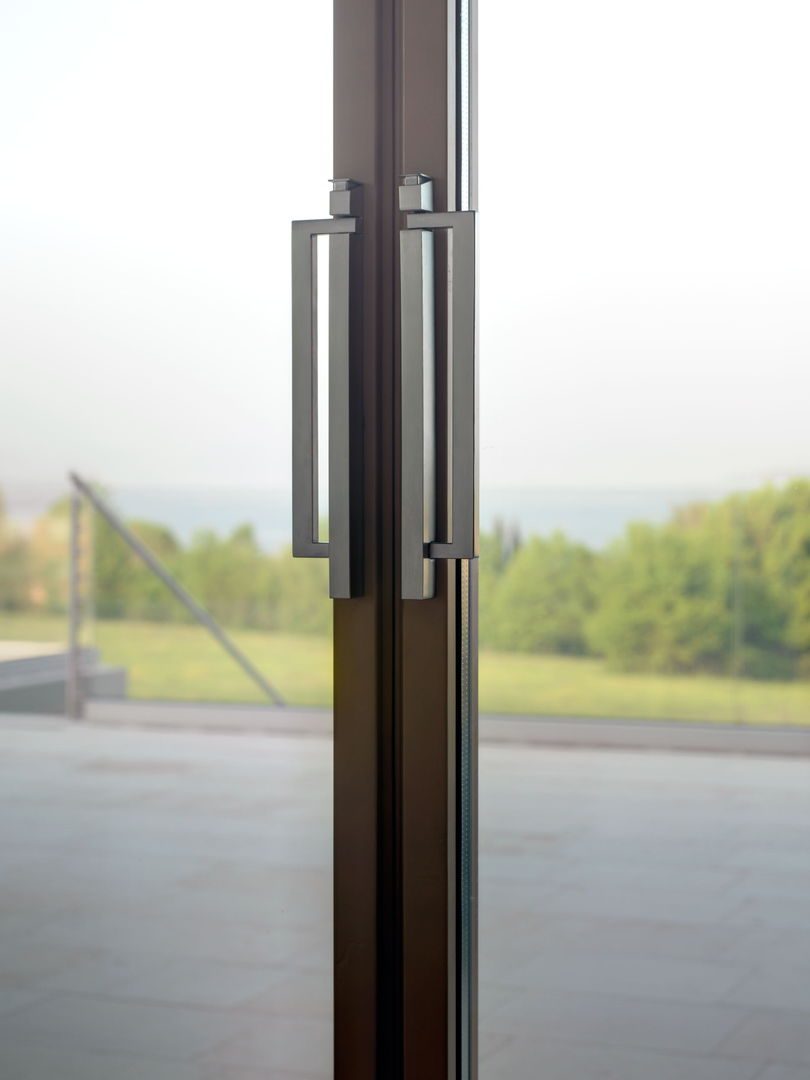

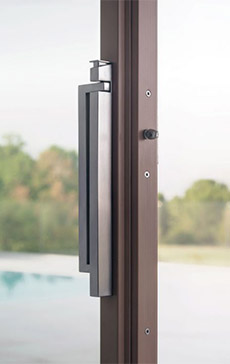

The Skyline Handle is characterised by minimal lines with a discreet visual impact. The product is equipped with an internal mechanism, light and easy to handle.
